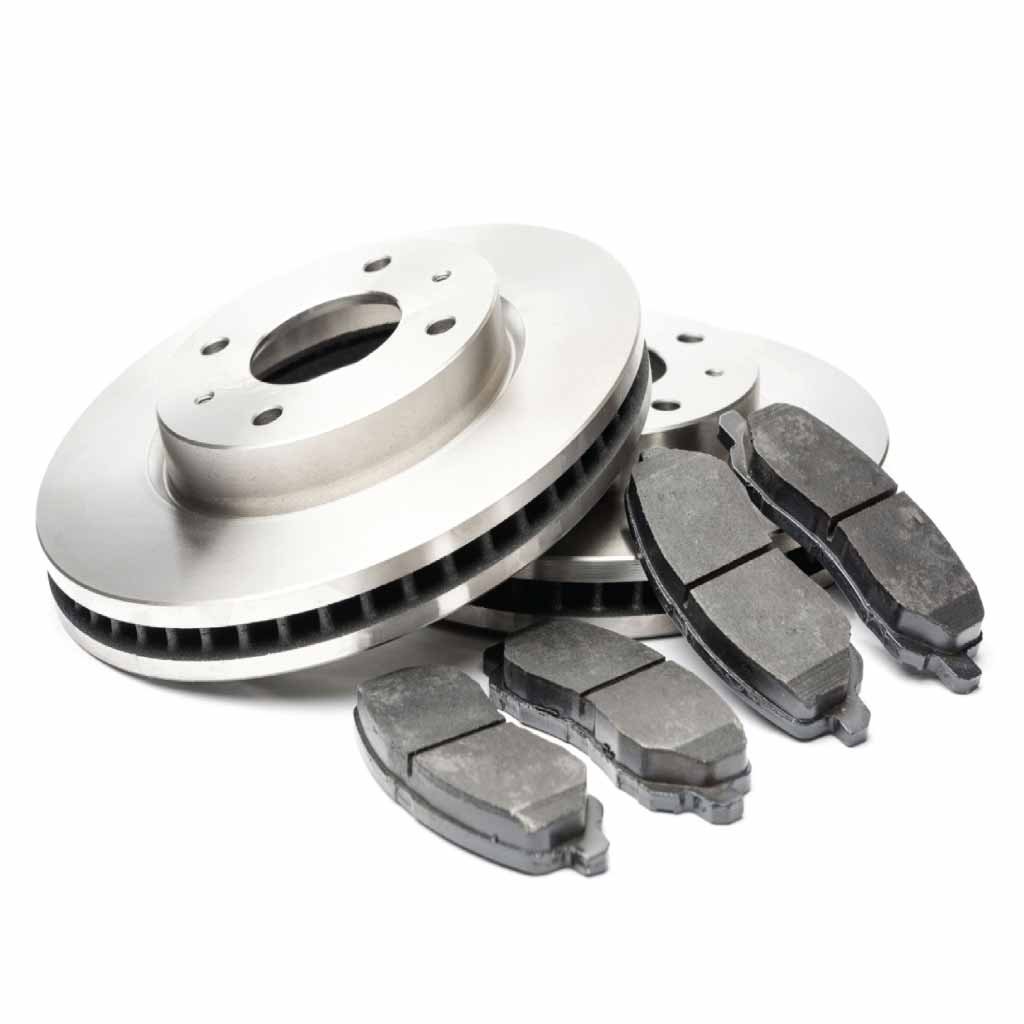

When it comes to vehicle safety, few components are as important as your brake pads. They may look small, but they decide how quickly your car can stop, how smoothly it slows down, and how safe you feel behind the wheel. Yet, many people only think about brake pads when they start making noise or when a mechanic warns them that they’re worn out.
In reality, understanding brake pad sizes, types, and compatibility can help you maintain your vehicle properly and avoid expensive mistakes. This guide explains brake pad sizes in a natural, easy-to-understand way, while also giving you a simple brake pad size chart you can use as a reference.
Why Brake Pad Size Matters
Brake pads aren’t “one size fits all.” Every car, SUV, truck, or motorcycle requires a specific size and shape. Even a small mismatch can cause:
- Poor braking performance
- Uneven wear
- Excess heat buildup
- Damage to rotors
- Noise, vibration, or squeaking
- Reduced fuel efficiency
I have personally seen people buy brake pads online just by guessing or picking the cheapest option, and they ended up with pads that were slightly off — maybe 1–2 mm difference in thickness or a slightly different backing plate shape. That tiny difference cost them more money and a lot of frustration.
Knowing the correct size before buying pads saves time, protects your rotors, and ensures you’re getting the braking power your vehicle is designed to deliver.
How Brake Pad Sizes Are Measured
Brake pad size is more than just its length or height. Every pad has several dimensions that decide whether it will fit your caliper properly. Understanding these measurements helps you avoid mistakes, choose the right replacement, and keep your braking smooth and safe.
1. Pad Length (L)
Pad length is the longest horizontal measurement of the brake pad backing plate. Even a tiny difference in length can stop the pad from sliding correctly into the caliper. If the length is wrong, the pad won’t fit or may move loosely during braking.
2. Pad Height (H)
Pad height is measured from the top to the bottom of the backing plate. This dimension affects how much of the rotor surface the pad can cover. If the height doesn’t match correctly, you’ll get uneven braking, reduced stopping power, and faster wear.
3. Pad Thickness (T)
Pad thickness includes both the metal backing plate and the friction material. This measurement decides how the pad sits inside the caliper. If it’s too thick, the pads drag on the rotor; too thin, and braking becomes weak and unsafe much sooner.
4. Slot & Chamfer Design
Slots, chamfers, and shims are small design details that improve braking performance. Slots help reduce heat, chamfers lower noise, and shims prevent vibration. These don’t change the pad’s main size but greatly affect how well it fits and performs in real driving.
5. Caliper Type Compatibility
Brake pads are made to match specific caliper types such as floating, fixed, or multi-piston designs. Each caliper shape requires a pad shaped to fit it perfectly. That’s why choosing pads based only on size can be risky — shape matters just as much.
Brake Pad Size Chart (Common Sizes)
Note: Sizes vary by vehicle model and manufacturer. This chart gives you an idea of typical brake pad dimensions.
| Pad Type / Series | Length (mm) | Height (mm) | Thickness (mm) | Typical Vehicles |
|---|---|---|---|---|
| D316 | 129 mm | 52 mm | 17 mm | Honda Civic, Toyota Corolla |
| D537 | 137 mm | 47 mm | 16 mm | Toyota Camry, Honda Accord |
| D815 | 155 mm | 54 mm | 17 mm | SUVs like RAV4, CR-V |
| D1086 | 163 mm | 66 mm | 18 mm | Pickup trucks, mid-size SUVs |
| D1405 | 171 mm | 71 mm | 18 mm | Larger trucks, towing vehicles |
| D960 | 151 mm | 56 mm | 16 mm | Hyundai Elantra, Kia Forte |
| D1181 | 165 mm | 64 mm | 18 mm | Ford F-150 (rear pads) |
| D510 | 134 mm | 51 mm | 16 mm | Compact sedans |
| Motorcycle Pad A | 94 mm | 34 mm | 8 mm | 150–250cc bikes |
| Motorcycle Pad B | 102 mm | 39 mm | 9 mm | 300–500cc bikes |
These are general references — the actual pad for your car may vary based on trim level, year, or brake system upgrades.
Brake Pad Size Chart PDF:
This Brake Pad Size Chart PDF gives you a quick and clear reference to the most common brake pad dimensions used in cars, SUVs, trucks, and motorcycles. It lists length, height, and thickness so you can easily match the right pad for your vehicle. Download the PDF makes it simple to check sizes anytime, especially during repairs or parts replacement.
Read Also Our Latest Guide:
Crankshaft Bearing Size Chart (2025 Guide) + PDF
How to Find the Correct Brake Pad Size for Your Vehicle
Finding the correct brake pad size is easier than most people think. You just need to confirm a few details about your vehicle and compare them with trusted sources. When you follow the right steps, you avoid wrong purchases, fitment issues, and wasted time.
1. Check the Vehicle Owner’s Manual
Your vehicle’s manual is the simplest and most reliable place to start. It usually lists brake system details, including the pad series or part numbers meant for your specific model. Checking the manual first helps you avoid confusion and ensures you follow the manufacturer’s recommendation.
2. Look Up the OEM (Original Equipment Manufacturer) Part Number
OEM numbers are the most accurate way to confirm brake pad compatibility. You just enter your vehicle’s model, year, engine size, and trim, and search for the matching OEM pad online. This number guarantees the pad will fit exactly as it should.
3. Measure Your Old Brake Pads
If you prefer doing things yourself, measuring your old pads can help. Use a vernier caliper to check the length, height, and thickness. Then compare these measurements with new pad specifications. This method works well as long as the old pads aren’t completely worn out.
4. Use VIN Lookup Tools
Your Vehicle Identification Number (VIN) is like the car’s ID card. Entering it into a VIN lookup tool gives you the exact brake pad size and type made for your car. This method prevents most mistakes and is highly recommended for buying accurate brake parts.
Read Also Our Latest Guide:
Camshaft Size with Chart: Complete Guide for 2025
Types of Brake Pads and Their Sizes
Brake pad size also depends on the material and purpose.
1. Organic Brake Pads
- Made from fibers and resins
- Softer and quieter
- Suitable for small cars
- Typically thinner and smaller in size
2. Semi-Metallic Pads
- High heat resistance
- More durable
- Suitable for sedans, SUVs
These pads often have thicker backing plates and higher friction layers.
3. Ceramic Brake Pads
- High performance
- Quiet and clean
- Long-lasting
- Usually slightly thicker due to ceramic layers
4. Performance / Racing Pads
- Larger size
- Special slot and chamfer designs
- Thick friction layers for high temperatures
These require performance rotors and calipers as well.:
Signs You are Using the Wrong Brake Pad Size
Using the wrong brake pad size usually shows signs sooner than later. Your brakes may feel different, make unusual sounds, or behave strangely. Learning these early warning signals helps you catch the issue before it damages your rotors or compromises your safety on the road.
1. Metallic Clicking or Clunking
A clicking or clunking sound often means the pad is slightly shorter or loose in the caliper. Because it isn’t held firmly in place, it shifts each time you brake. This movement makes noise and reduces the stability of your braking system.
2. Uneven Wear Patterns
When brake pads don’t match the caliper’s design, they won’t sit flat on the rotor. This causes one side to wear faster than the other. Uneven wear is a clear sign something doesn’t fit right and needs immediate attention before the rotor gets damaged.
3. Overheating & Burning Smell
Pads that are too big or too small can’t absorb and release heat properly. This leads to overheating, which creates a burning smell during braking. Continuous heat buildup can warp the rotors, reduce braking power, and make your brakes unsafe very quickly.
4. Steering Wheel Vibration
If your steering wheel shakes when braking, the pad may not be aligned correctly due to incorrect height or thickness. This imbalance causes uneven pressure on the rotor. Over time, it can lead to serious vibration problems and even rotor warping.
5. Reduced Braking Power
When the pad doesn’t fully contact the rotor surface, you lose stopping power. This means you must press the brake harder to slow down. Longer stopping distances are dangerous, especially at high speeds or in traffic, so this issue must be fixed immediately.
6. Constant Squealing
Squealing that continues even after applying shims and grease often points to a pad that simply doesn’t fit the caliper correctly. The angle, shape, or size mismatch creates friction and noise. This squeal won’t disappear until the correct pad size is installed.
Read Also Our Latest Guide:
Camshaft Size with Chart: Complete Guide for 2025
How Brake Pad Thickness Affects Performance
Brake pad thickness plays a major role in how well your brakes respond. It affects heat control, pressure distribution, and overall stopping power. Choosing the right thickness ensures smooth braking, prevents rotor damage, and keeps your brake system working safely for a longer time.
Standard New Pad Thickness
New brake pads usually measure between 16–20 mm when you include both the friction material and the backing plate. This thickness gives the pad enough life to handle daily driving, absorb heat properly, and maintain consistent braking performance across thousands of kilometers without wearing out too quickly.
Minimum Safe Thickness
Mechanics recommend replacing brake pads when they reach 3 mm or less because they can no longer handle heat or pressure safely. Once pads get that thin, braking becomes weaker, stopping distance increases, and the metal backing plate may start scraping the rotor, causing costly damage.
Below 3 mm:
- Brake fade increases
- Rotor damage risk increases
- Heat builds faster
Too-Thick Pads
If pads are thicker than recommended:
- Calipers may not close properly
- Pads may rub the rotor constantly
- Heat buildup can warp the rotor
Always stick to the manufacturer’s recommended thickness.
Brake Pad Size for Popular Vehicle Brands
Here is a quick breakdown of common brake pad series used by top brands:
Toyota
Corolla → D316, D537
Camry → D537, D960
RAV4 → D815
Honda
Civic → D316
Accord → D537
CR-V → D815
Hyundai / Kia
Elantra → D960
Sonata → D1086
Sportage → D815
Ford
F-150 → D1181 (rear), D1086 (front)
Escape → D537
Chevrolet
Silverado → D1405
Malibu → D537
Your exact size may differ depending on trim and brake upgrade options.
How to Read a Brake Pad Number (Example: D537)
Brake pads often have a number starting with “D.”
“D” = Disc brake pad
537 = Shape and size code designed by FMSI (Friction Materials Standards Institute)
Each number corresponds to a specific design.
For example:
D537 = 137 x 47 x 16 mm
D316 = 129 x 52 x 17 mm
When shopping, always check the FMSI number first.
Brake Pad Replacement Tips (From Real Experience)
Replacing brake pads is simple, but doing it correctly makes all the difference in performance and safety. Small mistakes—like using wrong grease or ignoring rotor condition—can lead to noise, vibration, or faster wear. These practical tips help you install pads the right way every time.
1. Do not Cheap Out
It’s tempting to buy the cheapest brake pads, but low-quality ones wear out quickly, heat up faster, and often damage the rotors. Spending a little extra upfront gives you smoother braking, longer life, and a safer ride, especially during emergency stops or long downhill drives.
2. Replace Pads in Pairs
Brakes must stay balanced on both sides of the axle. If you replace only one pad, braking pressure becomes uneven, causing the vehicle to pull to one side. By changing both front or both rear pads together, you maintain equal wear and better braking stability.
3. Clean the Caliper Properly
Dust, rust, and old grease inside the caliper prevent the pads from sitting correctly. Even the right-sized pad can feel wrong if the caliper is dirty. A clean caliper ensures smooth movement, proper alignment, and even pressure across the rotor during braking.
4. Use Brake Grease (Not Regular Grease)
Brake systems get extremely hot, and regular grease can melt or burn. Brake grease is designed to handle high temperatures and prevents noise, vibration, and sticking. Apply it lightly on the sliding pins and contact points to keep everything moving smoothly and quietly.
5. Check Rotor Thickness
New pads on worn-out rotors don’t perform well. Thin or uneven rotors cause vibration, squealing, and poor braking power. Before installing new pads, always measure the rotor thickness. If it’s below the minimum limit, replace or resurface it for proper pad contact.
6. Bed-In the Pads
Bedding-in helps new pads and rotors adjust to each other. Drive gently for the first 100–150 km, avoiding sudden braking. This forms an even friction layer, improves stopping power, prevents glazing, and ensures the pads last longer without creating noise or vibration.
Read Also Our Latest Guide:
Final Words
Brake pad size may seem like a technical detail, but it plays a huge role in your safety and your car’s performance. A properly sized brake pad gives you smoother braking, longer rotor life, and overall better control of your vehicle. Use the chart above as a reference, check your OEM specifications, and always choose pads that match your caliper perfectly.
If you are maintaining your vehicle yourself or buying parts online, this knowledge will save you money, prevent mistakes, and keep you safe on the road.
Read Also Our Latest Guide:
M Washer Size Chart: Complete Dimensions Guide (2025)
FAQs:
How do I know my brake pad size?
To know your brake pad size, first check your vehicle’s manual, which lists the recommended pads. You can also measure your current pads using a ruler or caliper. Many online guides provide charts by car make and model. If unsure, a professional mechanic can measure and confirm the correct size for safe braking performance.
What size are brake pads in MM?
Brake pad sizes in millimeters vary by vehicle type and manufacturer. Typical front pads are around 100–180 mm long and 40–70 mm wide, while rear pads are slightly smaller. Thickness also matters, usually starting at 10–15 mm for new pads. Always refer to your car manual or a size chart to get exact measurements in mm.
Do brake pads have sizes?
Yes, brake pads come in specific sizes designed for each car’s braking system. They differ in length, width, and thickness depending on the model, year, and axle position (front or rear). Using the wrong size can cause poor braking, uneven wear, or damage. That’s why checking a vehicle-specific chart or manual is always important.
Is 4 mm brake pad ok?
A 4 mm brake pad is very close to the minimum safe thickness. Most mechanics recommend replacing pads when they reach 3–4 mm. Driving with 4 mm pads is possible, but it’s wise to plan for replacement soon, as braking performance decreases and rotor damage becomes more likely if you wait too long.
Is 3 mm ok for brake pads?
No, 3 mm brake pads are considered worn out and unsafe. Pads this thin offer minimal braking power and increase stopping distance. Driving with 3 mm pads can damage your rotors and compromise safety. It’s best to replace brake pads before they reach this thickness to maintain effective and reliable braking.
Is 7 mm on brake pads ok?
Yes, 7 mm thickness on brake pads is generally safe and usable. New pads are usually 10–15 mm, so 7 mm indicates moderate wear. While they still work well, you should monitor them regularly. Planning replacement before they drop below 4 mm ensures optimal braking performance and safety.
