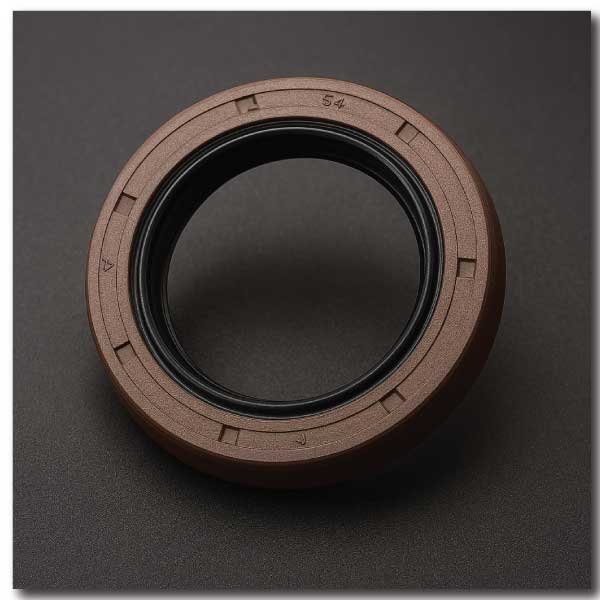

The crankshaft seal is a vital component in any engine, playing a key role in preventing oil leaks around the crankshaft. Also known as a crankshaft oil seal, it ensures that engine oil remains inside the engine while allowing the crankshaft to rotate smoothly.
Understanding the crankshaft seal meaning and its definition is important for both mechanics and automotive enthusiasts, as a faulty seal can lead to serious engine problems. Crankshaft seals are typically made of durable materials like rubber or synthetic compounds to withstand heat, pressure, and friction.
They are used at the front and rear ends of the crankshaft and come in various types depending on engine design. Beyond preventing oil leakage, a crankshaft seal also protects other engine components from dirt and contaminants. Knowing its uses, materials, and working principle helps in proper maintenance and ensures long engine life.
Crankshaft Seal Meaning:
The crankshaft seal is a protective component that prevents oil from leaking around the crankshaft as it rotates. It ensures that the engine maintains proper lubrication while protecting internal parts from dirt and debris. Without this seal, engines can experience oil loss, reduced efficiency, and potential damage to critical components.
Crankshaft Seal Definition:
A crankshaft seal is a mechanical device, usually made of high-quality rubber or synthetic material, fitted around the crankshaft to prevent engine oil from escaping while allowing smooth rotation. Also called an oil seal or main seal, it is placed at the engine’s front and rear ends. The seal protects the engine by keeping lubrication intact, reducing wear and tear, and preventing contamination from dirt and debris. A properly functioning crankshaft seal is essential for engine performance, efficiency, and longevity.
Also Read:
Crankshaft Seal Parts
A crankshaft seal may look like a small and simple engine component, but it is made up of several important parts that work together to prevent oil leakage and ensure smooth engine operation. Understanding these parts helps in proper maintenance, replacement, and troubleshooting of engine problems.
Seal Lip (Primary Sealing Surface):
The seal lip is the most crucial part of a crankshaft seal. It is a thin, flexible edge that directly contacts the crankshaft surface. This lip maintains a tight seal while the crankshaft rotates, preventing engine oil from escaping. Seal lips are often made of durable materials like nitrile rubber, silicone, or Viton to withstand heat, pressure, and friction. Some crankshaft seals have a single lip, while others feature a double lip for extra protection against oil leaks and dust.
Metal Case or Housing:
The metal case provides structural support to the seal. It helps keep the seal in position within the engine block or timing cover. Typically made of steel, this part ensures that the seal remains properly aligned and does not warp or bend during engine operation. The metal case also allows the seal to be installed securely using a press-fit method without damaging the delicate sealing lip.
Spring (Garter Spring):
Many crankshaft seals include a small garter spring around the seal lip. This spring provides additional tension, pressing the lip firmly against the crankshaft. The spring ensures a consistent seal even if the engine experiences vibrations, minor shaft misalignments, or thermal expansion. The garter spring is usually made of corrosion-resistant steel to withstand heat and oil exposure over time.
Secondary Sealing Lip (Optional):
Some modern crankshaft seals have a secondary lip, also called a dust lip. This extra lip protects against contaminants like dirt, dust, and water, preventing them from reaching the primary seal and crankshaft. This part is particularly useful in high-performance engines or vehicles that operate in harsh environments.
Elastomer Body:
The main body of the seal, made from elastomer material, connects the metal case and the sealing lip. It provides flexibility while maintaining durability, allowing the seal to adapt to small movements or imperfections in the crankshaft surface. The elastomer body also resists wear, oil degradation, and high engine temperatures.
O-Ring or Seal Gasket (In Some Designs):
Certain crankshaft seals include an O-ring or gasket between the seal and the engine block. This component ensures a tighter fit and prevents oil leakage around the outer edges of the seal. It is particularly common in rear main seals where the engine meets the transmission.
In summary, a crankshaft seal is more than just a simple rubber ring. Its main parts – seal lip, metal case, spring, elastomer body, and optional secondary lip or O-ring – all work together to maintain engine oil integrity, protect internal components, and ensure smooth, efficient engine operation. Proper understanding of these parts can help mechanics and car owners identify issues early and perform timely replacements, preventing costly engine damage.
Also Read:
Crankshaft Seal Uses:
The crankshaft seal is a small but essential component in an engine, and its uses go far beyond simply “keeping oil in place.” Understanding the uses of a crankshaft seal helps in appreciating its role in engine performance, longevity, and maintenance.
1- Preventing Engine Oil Leaks:
The primary and most important use of a crankshaft seal is to prevent engine oil from leaking out where the crankshaft exits the engine block or timing cover. Engines rely on proper lubrication for smooth operation and to reduce friction between moving parts. A leaking seal can cause oil loss, leading to low lubrication, overheating, and increased wear on engine components. By maintaining a tight seal, the crankshaft seal ensures that oil stays where it belongs.
2- Protecting Engine Components from Contaminants:
In addition to containing oil, the crankshaft seal also prevents dirt, dust, and debris from entering the engine. Contaminants can scratch or wear down the crankshaft, bearings, and other internal parts. Some seals feature a secondary dust lip that provides an extra layer of protection. This is especially important in vehicles driven on rough or dusty terrains, where the risk of contamination is higher.
3- Maintaining Engine Efficiency:
A well-functioning crankshaft seal helps maintain engine efficiency by keeping the oil pressure stable. Oil leaks caused by faulty seals can reduce oil pressure, resulting in poor lubrication and increased friction. This, in turn, decreases engine performance and fuel efficiency. By ensuring proper sealing, the crankshaft seal contributes to smooth engine operation and optimal power delivery.
4- Reducing Environmental Pollution:
Leaking engine oil is not only harmful to the vehicle but also to the environment. Oil that drips onto the road or ground can contaminate soil and water sources. One of the indirect uses of a crankshaft seal is to minimize such environmental impact by preventing oil leaks. A high-quality seal ensures that engine oil stays contained within the engine system.
5- Supporting Engine Longevity:
The crankshaft is one of the most critical components in an engine. Excessive friction, improper lubrication, or contamination can severely damage it over time. By performing its sealing function effectively, the crankshaft seal supports the long-term health of the engine, reducing wear on bearings, crankshaft journals, and other moving parts. This makes timely inspection and replacement of crankshaft seals a key maintenance task.
6- Ensuring Safety During Engine Operation:
Oil leaks near the crankshaft area can sometimes drip onto hot engine parts, leading to smoke or even fire hazards. A reliable crankshaft seal enhances safety by preventing oil from escaping and coming into contact with heat sources. This makes it a vital component not just for engine performance but also for vehicle safety.
7- Facilitating Smooth Crankshaft Rotation:
The crankshaft seal allows the crankshaft to rotate freely while maintaining a tight barrier against oil leaks. This ensures smooth engine operation without unnecessary friction or resistance caused by oil escaping the system. Smooth rotation is crucial for maintaining consistent engine timing and preventing mechanical failures.
In summary, the uses of a crankshaft seal go beyond simple oil containment. It protects the engine from leaks, contaminants, and friction-related damage, ensures optimal efficiency, contributes to environmental safety, and supports the long-term longevity of the engine. Regular inspection and replacement of crankshaft seals are essential for maintaining a reliable and high-performing engine.
Also Read:
Crankshaft Seal Material:
The crankshaft seal is a critical engine component, and its performance largely depends on the materials used in its construction. Choosing the right crankshaft seal material ensures durability, proper sealing, and resistance to harsh operating conditions such as heat, oil, and friction. Modern engines use a combination of metals, elastomers, and sometimes specialized coatings to achieve this.
Rubber (Nitrile or NBR):
One of the most common materials used in crankshaft seals is nitrile rubber, also known as NBR (Nitrile Butadiene Rubber). NBR is highly resistant to oil, grease, and fuel, making it ideal for sealing applications. It also tolerates moderate heat, pressure, and friction, which are common in engine environments. Nitrile rubber seals are widely used in both passenger vehicles and industrial engines due to their cost-effectiveness and reliable performance.
Silicone Rubber:
Silicone is another popular material for crankshaft seals, especially in high-temperature applications. Silicone rubber maintains flexibility even under extreme heat, making it suitable for engines that operate at elevated temperatures. While it may be less resistant to certain chemicals than NBR, silicone provides excellent long-term elasticity and prevents hardening or cracking over time. This makes it a preferred choice for performance vehicles and racing engines.
Fluoroelastomer (Viton or FKM):
Fluoroelastomer, commonly known by trade names like Viton or FKM, is a high-performance crankshaft seal material. It offers superior resistance to heat, chemicals, and oil, far exceeding that of conventional rubber. Viton seals are often used in modern engines, turbocharged vehicles, and industrial machinery where extreme temperatures and chemical exposure are common. Though more expensive than NBR or silicone, Viton ensures long-lasting reliability and minimal maintenance.
Metal Case or Reinforcement:
Most crankshaft seals have a metal case or reinforcing ring embedded in the elastomer body. Typically made of stainless steel or carbon steel, the metal case provides structural integrity, prevents deformation under pressure, and allows easy installation using press-fit techniques. The combination of a flexible elastomer with a rigid metal case ensures that the seal remains firmly in place while adapting to minor crankshaft imperfections.
Spring (Garter Spring Material):
Many crankshaft seals include a garter spring around the sealing lip to maintain constant pressure against the crankshaft. These springs are usually made from stainless steel or other corrosion-resistant alloys. The spring material must withstand heat, oil exposure, and engine vibrations without losing its tension, ensuring the seal maintains a tight contact with the rotating crankshaft.
Advanced Coatings (Optional):
Some high-performance seals feature special coatings on the lip, such as PTFE (Teflon), to reduce friction, enhance durability, and prevent premature wear. These coatings are especially useful in engines operating under high RPMs or extreme conditions.
In summary, a crankshaft seal is made of a combination of elastomers (like NBR, silicone, or Viton), metal reinforcement, and sometimes advanced coatings or springs. Each material is carefully chosen to provide durability, flexibility, and resistance to oil, heat, and friction. Selecting the right material ensures optimal engine performance, prevents leaks, and extends the life of both the seal and the engine.
Also Read:
Crankshaft Seal Working Principle:
The crankshaft seal plays a critical role in an engine by preventing oil leakage while allowing the crankshaft to rotate freely. Understanding the working principle of a crankshaft seal helps mechanics and vehicle owners appreciate its function and importance in maintaining engine efficiency and longevity.
1- Basic Function:
At its core, a crankshaft seal is a barrier between the rotating crankshaft and the stationary engine components, such as the engine block or timing cover. Its main purpose is to contain engine oil within the engine, preventing leaks that could reduce lubrication, cause overheating, or damage other engine parts. The seal achieves this by maintaining a tight contact with the crankshaft through a flexible sealing lip.
2- Seal Lip Contact:
The primary sealing lip is the key component that makes the crankshaft seal functional. As the crankshaft rotates, the lip presses against its surface, forming a tight barrier. This contact prevents oil from escaping while allowing smooth rotation. The elasticity of the lip ensures continuous contact even if the crankshaft experiences slight vibrations, thermal expansion, or minor misalignments.
3- Garter Spring Support:
Many crankshaft seals include a garter spring around the sealing lip. This spring applies consistent radial pressure, ensuring the lip stays in firm contact with the crankshaft. By compensating for wear and thermal expansion, the garter spring enhances the seal’s reliability and prevents leaks over time.
4- Secondary Lip (Optional):
Some crankshaft seals have a secondary dust lip that protects the primary lip from dirt, debris, and contaminants. This secondary lip does not seal oil directly but prevents harmful particles from reaching the primary sealing surface, which could cause abrasion and premature wear.
5- Metal Case and Elastomer Flexibility:
The seal’s metal case holds the elastomer body and lip securely in place, preventing deformation during engine operation. Meanwhile, the elastomer body provides flexibility, allowing the seal to adapt to minor crankshaft imperfections. This combination ensures that the seal remains effective under varying operating conditions.
6- Oil Film Principle:
The crankshaft seal works on the principle of oil film lubrication. A thin layer of oil exists between the sealing lip and the crankshaft surface, which reduces friction and wear. This oil film allows the crankshaft to rotate smoothly while maintaining an effective seal. Proper oil type and viscosity are essential to ensure that the seal performs optimally.
7- Dynamic Sealing:
Unlike a simple static seal, the crankshaft seal operates in a dynamic environment because the crankshaft is constantly moving. Its working principle relies on the seal’s ability to maintain continuous contact, resist oil pressure, and adapt to rotational speed, temperature changes, and engine vibrations.
In summary, the working principle of a crankshaft seal is based on maintaining a tight contact between the sealing lip and the rotating crankshaft. Supported by a garter spring, elastomer flexibility, and sometimes a secondary lip, the seal prevents oil leakage while allowing smooth rotation. By effectively containing engine oil and protecting internal components, the crankshaft seal ensures engine efficiency, longevity, and reliability.
Also Read:
Crankshaft Seal Failure Causes
The crankshaft seal is a small but vital component in any engine, and when it fails, it can lead to oil leaks, reduced engine performance, and even serious mechanical damage. Understanding the causes of crankshaft seal failure helps in preventing problems and ensuring timely maintenance.
1- Aging and Wear:
Over time, the rubber or elastomer material of the crankshaft seal can become brittle, harden, or crack due to continuous exposure to heat, oil, and friction. This natural aging process reduces the seal’s elasticity, causing it to lose its tight grip on the crankshaft and eventually leak. Regular inspection and replacement are necessary to avoid failure due to wear.
2- Excessive Heat:
Engines generate a lot of heat, and prolonged exposure to high temperatures can degrade the seal material. Heat can cause the rubber to expand, warp, or harden, which reduces its ability to maintain a proper seal. This is particularly common in high-performance or heavily used engines where cooling is insufficient.
3- Oil Contamination:
Engine oil often contains contaminants such as dirt, metal particles, or chemicals that can degrade the seal material over time. Contaminated oil increases wear on the sealing lip and may lead to cracks or erosion, reducing the effectiveness of the seal. Using clean, high-quality oil and changing it regularly helps prevent this cause.
4- Improper Installation:
A crankshaft seal must be installed correctly for optimal performance. Improper installation—such as misalignment, using excessive force, or damaging the sealing lip—can lead to premature failure. Even a small nick or tear in the seal during installation can cause oil leaks almost immediately.
5- Crankshaft Surface Damage:
The crankshaft surface where the seal contacts must be smooth and free from scratches, nicks, or corrosion. Any imperfection can create gaps between the seal lip and crankshaft, allowing oil to escape. Surface damage may result from wear over time, poor maintenance, or incorrect handling during engine assembly.
6- Excessive Engine Pressure:
High crankcase pressure can push oil past the seal, causing leaks. Pressure buildup may result from blocked ventilation, a clogged PCV valve, or other engine issues. Seals are designed to handle normal pressure, but extreme pressure can compromise their function and lead to failure.
7- Chemical Attack:
Exposure to harsh chemicals, improper cleaning agents, or fuel leaks can degrade the elastomer material of the seal. This chemical attack reduces elasticity, making the seal brittle and prone to cracking. Using compatible oils and avoiding chemical contamination is crucial.
In summary, crankshaft seal failure can result from aging, heat, oil contamination, improper installation, crankshaft surface damage, excessive engine pressure, or chemical exposure. Regular maintenance, proper installation, and careful monitoring of engine conditions are essential to prevent premature seal failure and maintain optimal engine performance.
Also Read:
Final Thoughts
The crankshaft seal may seem like a small component, but its role in engine performance is significant. It prevents oil leaks, protects internal engine components from dirt and debris, maintains proper lubrication, and ensures smooth crankshaft rotation. Understanding its definition, uses, types, materials, and working principle helps vehicle owners and mechanics perform timely maintenance and prevent costly engine damage. Regular inspection, proper installation, and using high-quality seals can greatly enhance engine longevity and efficiency. A well-maintained crankshaft seal is key to keeping your engine running smoothly and reliably.
