Computer Numerical Control (CNC) machines have revolutionized manufacturing by enabling precision automation. Among these machines, the 5 axis CNC machine stands out due to its extraordinary flexibility and capability. But what exactly is a 5 axis CNC machine? How does it differ from traditional machines, and why is it vital in modern industries? Let’s dive deep into this topic.

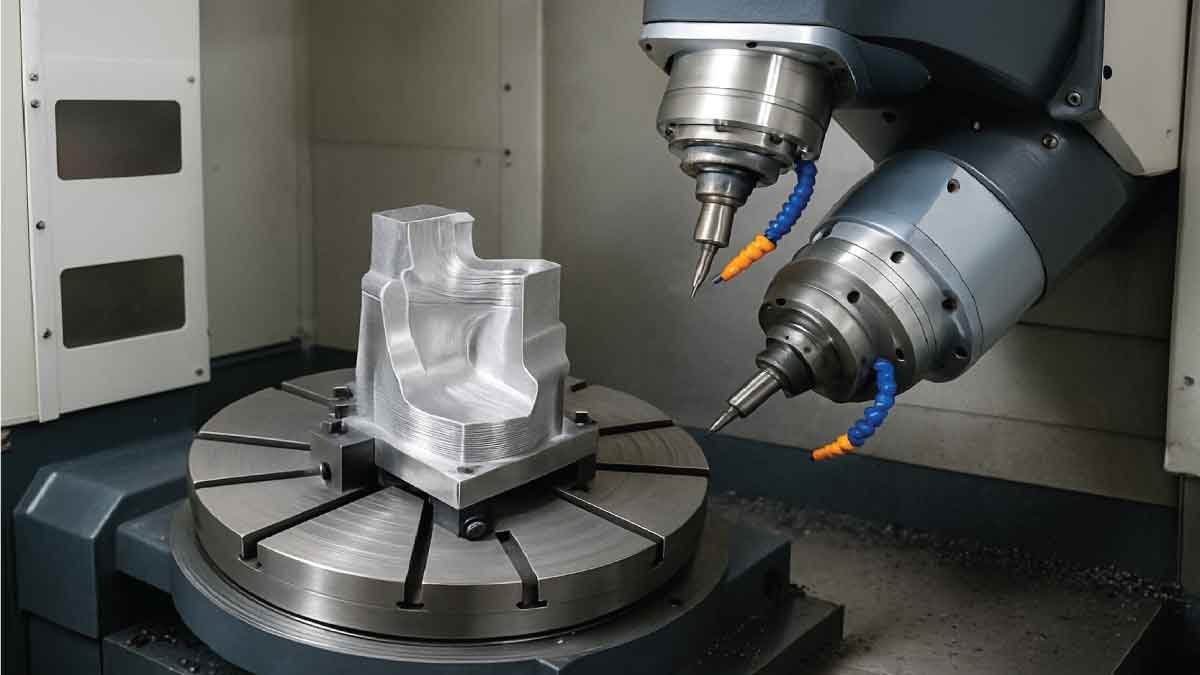

What Is a 5 Axis CNC Machine?
At its core, a 5 axis CNC machine is a computer-controlled cutting tool that moves along five different axes. Traditional CNC machines usually operate on three axes—X, Y, and Z—allowing movement left-right, forward-backward, and up-down. A 5 axis machine adds two additional rotational movements, typically called the A and B axes. This lets the cutting tool or the workpiece rotate and tilt, enabling access to complex geometries from virtually any angle.
This expanded range of motion means that the 5 axis CNC machine can produce highly intricate parts in a single setup, eliminating the need for multiple repositioning. This reduces human error and saves valuable production time. In industries like aerospace, automotive, and medical device manufacturing, this is a game changer because precision and complexity are paramount.
How Does a 5 Axis CNC Machine Work?
The operation of a 5 axis CNC machine involves coordinating movements along three linear axes and two rotational axes. The X, Y, and Z axes control the linear movement of the cutting tool or the workpiece, just like in a 3 axis machine. The additional rotary axes allow the tool or part to rotate around these linear axes.
The two rotary axes, often called A and B, can either move the workpiece or the cutting head, depending on the machine’s design. This allows the tool to approach the workpiece from different angles, enabling the machining of undercuts, angled features, and complex curves.
Modern 5 axis machines are controlled by sophisticated CNC controllers and software that simultaneously coordinate all five axes. This simultaneous movement allows smooth, precise toolpaths that follow complex 3D shapes perfectly. This is especially important for parts with curved surfaces or intricate details, such as turbine blades or medical implants.
5 Axis CNC Machining vs 3 Axis CNC Machining
Many beginners wonder what distinguishes 5 axis CNC machining from the simpler 3 axis machines. While both types use computer control to automate machining, the key difference is the range of motion and complexity of parts they can handle.
A 3 axis CNC machine can only move the cutting tool along three linear directions. This limits it to machining one face or surface of the part at a time. For parts with features on multiple sides or angled surfaces, the operator must reposition the part multiple times, increasing setup time and the risk of misalignment.
In contrast, a 5 axis machine’s ability to tilt and rotate either the tool or the workpiece reduces the number of setups drastically. This not only saves time but also improves precision by machining the entire part in a single setup. Complex shapes with deep pockets, curved surfaces, and intricate details become easier and more cost-effective to produce.
Types of 5 Axis CNC Machines
There are different types of 5 axis CNC machines, each designed to suit particular machining needs:
Table/Table Configuration: Both rotary axes are part of the worktable. This setup is ideal for large, heavy parts because the workpiece rotates instead of the tool. It’s often used in aerospace and automotive manufacturing.
Head/Head Configuration: Both rotary axes are integrated into the tool head. This configuration provides excellent tool flexibility and is suited for smaller, precision parts.
Table/Head Configuration: One rotary axis is on the worktable, and the other is on the tool head. This offers a balance of flexibility and the ability to handle medium-sized parts.
Each configuration has pros and cons. For example, table/table machines handle larger parts but can be less precise due to the mass moved, while head/head machines provide superior precision for small components.
Benefits of 5 Axis CNC Machines
The advantages of 5 axis CNC machines extend far beyond just more axes of movement:
Reduced Setup Time: Machining multiple faces in a single setup saves hours or even days.
Higher Accuracy: Less repositioning means fewer chances of human or mechanical error.
Improved Surface Finish: The tool can maintain optimal cutting angles on curved surfaces, resulting in smoother finishes.
Longer Tool Life: Reduced cutting forces and better tool orientation decrease wear and tear.
Greater Design Flexibility: Complex parts that once required multiple machining processes or manual work can now be completed efficiently.
These benefits lead to reduced production costs, faster turnaround, and higher-quality parts, which is why 5 axis machines are critical in high-precision industries.
Common 5 Axis CNC Machine Applications
5 axis machines are incredibly versatile and find use in many industries:
Aerospace: For machining complex engine parts, turbine blades, and airframe components with tight tolerances.
Automotive: Producing molds, prototypes, and custom parts with complex shapes.
Medical Devices: Manufacturing implants, prosthetics, and surgical tools that require high precision.
Jewelry and Art: Crafting intricate designs that are impossible with simpler machines.
Energy: Making parts for turbines, pumps, and drilling equipment.
In all these sectors, the ability to machine complicated shapes in fewer setups saves both time and money while ensuring the quality needed for safety and performance.
5 Axis CNC Programming Basics
Programming a 5 axis machine is more complex than programming 3 axis CNC. You have to manage not only linear movements but also rotation, ensuring the toolpath is collision-free and efficient.
Most modern shops use CAM software such as Fusion 360, Mastercam, or Siemens NX. These programs generate toolpaths automatically based on 3D models, simulating the machining process before actual cutting. This reduces errors and material waste.
Beginners should focus on understanding rotary axis limits, proper tool orientation, and safe toolpaths. Learning 5 axis CNC programming basics is essential to fully harness the machine’s capabilities.
Cost of 5 Axis CNC Machines
When investing in CNC machinery, understanding the cost of 5 axis CNC machines is vital. Because of their complexity and precision components, these machines are more expensive than standard 3 axis machines.
Entry-level 5 axis machines suitable for smaller shops might cost $50,000 to $100,000, while high-end industrial machines can exceed $500,000. Additional costs include tooling, programming software, maintenance, and training.
Despite the high upfront cost, many manufacturers find that the benefits in efficiency, precision, and part complexity justify the investment, especially for high-value or complex parts.
Advantages of Multi-Axis Machining
Multi-axis machining, including 4, 5, or more axes, brings distinct advantages:
Design Freedom: Machinists can create shapes with complex curves and angles that are impossible with fewer axes.
Reduced Fixtures: Less need for special jigs or repositioning saves time and cost.
Faster Production: Multiple operations can be done in one setup.
Improved Surface Quality: Tools maintain optimal orientation throughout the cut.
This flexibility has helped industries push the boundaries of what’s manufacturable, from lightweight aerospace components to intricate medical devices.
Rotary Axis in CNC Machines
The rotary axis in CNC machines refers to the axes that provide rotation, enabling the tool or workpiece to move around the X, Y, or Z axes.
This rotation is essential for 5 axis machines to achieve the complex movements required. Rotary axes use precise servo motors and encoders to maintain accuracy and smooth motion. Controlling these rotations correctly is critical to avoiding collisions and ensuring machining accuracy.
Simultaneous 5 Axis Machining
Simultaneous 5 axis machining means that all five axes move at the same time during the cutting process. This allows the cutting tool to follow intricate 3D contours smoothly.
Compared to indexed machining, where rotary axes move in fixed increments, simultaneous machining achieves better surface finishes, shorter cycle times, and greater geometric accuracy. It’s ideal for parts like turbine blades, molds, and sculpted surfaces.
Best 5 Axis CNC Machine for Beginners
For newcomers, choosing the best 5 axis CNC machine for beginners is key. Smaller desktop models from manufacturers like Pocket NC provide a good introduction to multi-axis machining at a lower cost and with simpler controls.
Beginners should also invest in training, practice programming, and start with simple projects before moving on to complex parts. Learning resources, community forums, and manufacturer support play a huge role in the learning curve.
5 Axis CNC Machine for Aerospace Industry
The aerospace industry demands parts with extremely tight tolerances and complex geometries. 5 axis CNC machines for aerospace enable manufacturers to produce turbine blades, engine casings, and structural components efficiently.
These machines can handle exotic materials like titanium and composites, machining them with precision while minimizing waste and cycle times. Aerospace parts often require both high strength and lightweight designs, which 5 axis machining makes possible.
CNC Machining Precision and Accuracy
Precision and accuracy are fundamental in CNC machining. A 5 axis CNC machine improves CNC machining precision and accuracy by reducing the need for part repositioning. Machining complex parts in one setup eliminates cumulative errors from multiple setups.
High-end 5 axis machines include advanced calibration and probing systems that verify tool and part positions in real-time, ensuring repeatability and tight tolerances necessary for demanding applications.
The Future of 5 Axis CNC Technology
The future of 5 axis CNC technology looks exciting. Integration with AI and machine learning is making CNC machines smarter—allowing predictive maintenance, optimized toolpaths, and adaptive machining based on sensor feedback.
Industry 4.0 concepts enable these machines to communicate with other factory equipment for fully automated production lines. As costs come down and technology advances, even small shops will gain access to 5 axis machining capabilities, driving innovation and quality improvements across manufacturing sectors.
Conclusion
A 5 axis CNC machine is more than just a tool — it’s a gateway to advanced manufacturing possibilities. By combining linear and rotary axes, these machines unlock complex geometries, reduce production times, and improve precision.
Whether you’re comparing 5 axis vs 3 axis CNC machines, learning 5 axis CNC programming basics, or planning to invest in your first machine, understanding this technology is essential. While the cost of 5 axis CNC machines might be significant, the efficiency gains and design freedoms they offer make them invaluable for modern manufacturing.
As the future of 5 axis CNC technology continues to evolve, embracing this powerful tool will be key to staying competitive and innovative in a rapidly changing world.
FAQs:
What is the main difference between a 3 axis and a 5 axis CNC machine?
The main difference lies in movement flexibility. A 3 axis CNC machine moves the tool or workpiece along X, Y, and Z linear directions. A 5 axis CNC machine adds two rotational axes, allowing the tool or part to tilt and rotate. This lets the machine handle more complex shapes in fewer setups, improving precision and reducing production time.
What industries use 5 axis CNC machines the most?
5 axis CNC machines are widely used in aerospace, automotive, medical device manufacturing, and energy sectors. These industries require highly precise, complex parts with tight tolerances. The ability of 5 axis machines to machine intricate geometries efficiently makes them ideal for producing turbine blades, engine components, surgical implants, and custom prototypes.
Is 5 axis CNC machining harder to learn than 3 axis machining?
Yes, 5 axis machining is generally more complex due to additional axes and rotational movements. Programming and operating require understanding multi-axis toolpaths and collision avoidance. However, with modern CAM software and training, beginners can learn it over time. Starting with simpler machines and projects helps build confidence before tackling advanced 5 axis machining.
How much does a 5 axis CNC machine typically cost?
5 axis CNC machines vary widely in price, depending on size, brand, and capabilities. Entry-level models for small shops might start around $50,000, while industrial-grade machines can cost several hundred thousand dollars. Additional expenses include tooling, software, maintenance, and training. Despite the upfront cost, many manufacturers find the efficiency and precision gains worth the investment.
Can a 5 axis CNC machine improve the quality of finished parts?
Absolutely! The ability to machine complex shapes in a single setup reduces errors from repositioning. Also, maintaining optimal tool angles throughout cuts improves surface finish and dimensional accuracy. This results in higher quality parts with smoother finishes and tighter tolerances, which is especially important in aerospace and medical applications.
What are the common types of 5 axis CNC machines?
Common types include table/table, head/head, and table/head configurations. Table/table machines rotate the workpiece on two axes and are great for large parts. Head/head machines rotate the tool on both axes, suited for small precision parts. Table/head machines combine both approaches for flexibility, balancing workpiece size and machining precision.
