Choosing the correct wire size for a 50-amp circuit is important for preventing excessive heat, voltage drop, and other electrical problems. The correct conductor depends on more than the circuit-breaker rating. Wire material, insulation temperature, installation conditions, circuit length, and the type of equipment all need to be considered.
For many common 50-amp circuits, 6 AWG copper wire is a practical and widely used choice. However, 8 AWG copper can have a 50-amp ampacity under certain 75°C conditions, so it should not automatically be ruled out. The final choice depends on the applicable electrical code, terminal ratings, installation method, and other requirements.
A 50-amp circuit can also use aluminum conductors, but the required size and connection requirements differ from copper.
This 50 amp wire size chart explains the most common conductor sizes, ampacity references, voltage considerations, wire configurations, and factors to check before installing a 50-amp circuit.
What Wire Size Is Needed for 50 Amps?
For many installations, 6 AWG copper wire is commonly selected for a 50-amp circuit.
The reason 6 AWG is frequently used is that it provides additional conductor capacity compared with smaller wire sizes and can provide more flexibility when installation conditions, terminal ratings, or voltage drop need to be considered.
However, wire size should not be selected simply by matching the number 50 to an AWG chart.
For example:
- 8 AWG copper can have a 50A ampacity under the 75°C column.
- 6 AWG copper has higher ampacity and is commonly used for 50A circuits.
- 6 AWG aluminum can also have a 50A ampacity under specified 75°C conditions.
- Longer circuits may require a larger conductor to control voltage drop.
- The equipment and terminals must be rated for the conductor and operating conditions.
Therefore, 6 AWG copper is a common starting point for a 50-amp circuit, but the exact wire size must be verified for the specific installation.

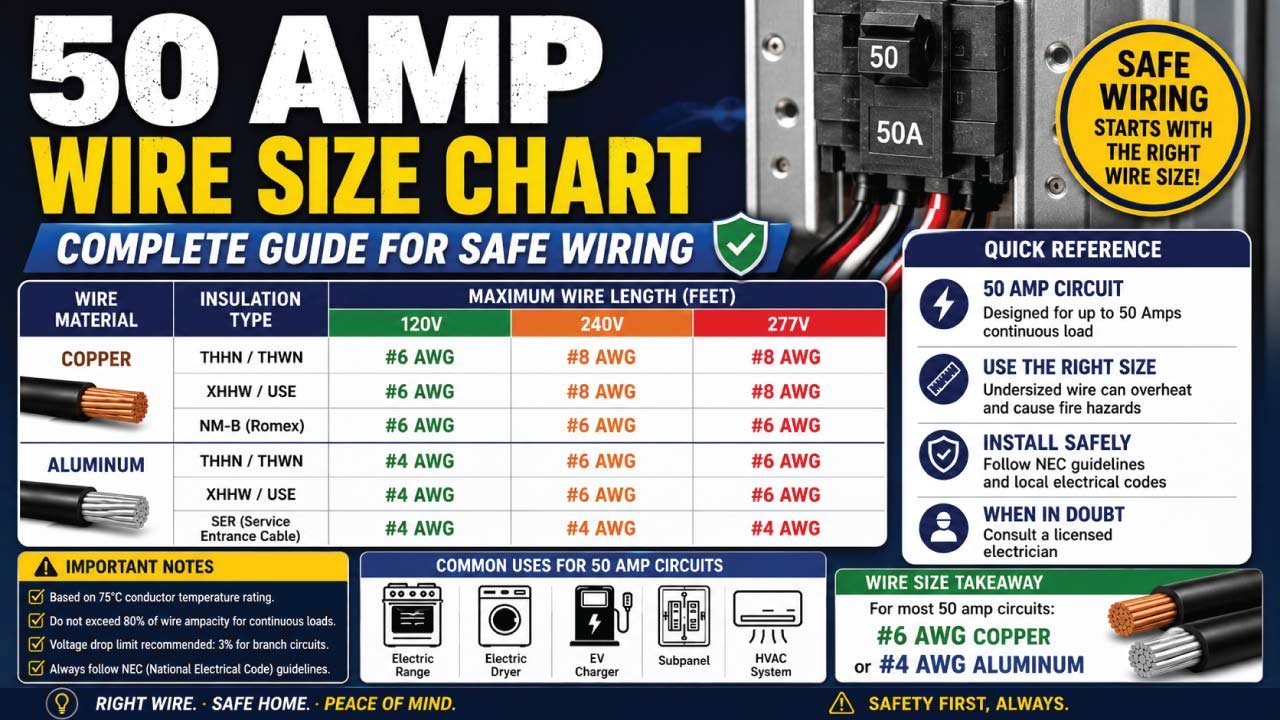

50 Amp Wire Size Chart
The following chart compares several conductor sizes commonly considered for a 50-amp circuit.
| Wire Size | Copper 60°C | Copper 75°C | General 50A Suitability |
|---|---|---|---|
| 10 AWG | 30 A | 35 A | Too small |
| 8 AWG | 40 A | 50 A | Conditional |
| 6 AWG | 55 A | 65 A | Common choice |
| 4 AWG | 70 A | 85 A | Larger than normally required |
| 2 AWG | 95 A | 115 A | Oversized for many 50A circuits |
The values shown are reference ampacities under specified temperature conditions. They do not mean that every conductor of that size can automatically be connected to a 50-amp breaker.
For many installations, 6 AWG copper provides a useful margin, while 8 AWG requires closer attention to the applicable conditions.
50 Amp Copper Wire Size
Copper is commonly used for 50-amp circuits because of its conductivity and relatively compact conductor size.
The most commonly discussed copper sizes are 8 AWG and 6 AWG.
8 AWG Copper
8 AWG copper has a conductor area of approximately 8.37 mm².
Its reference ampacity is approximately:
- 40A at 60°C
- 50A at 75°C
- 55A at 90°C
The 90°C value cannot simply be used as the final allowable ampacity for a 50-amp circuit. The applicable conductor, equipment terminals, correction factors, and code rules determine which temperature rating can be used.
Because of these limitations, 8 AWG copper should not be automatically selected for every 50A installation.
6 AWG Copper
6 AWG copper has a conductor area of approximately 13.3 mm².
Its reference ampacity is approximately:
- 55A at 60°C
- 65A at 75°C
- 75A at 90°C
This makes 6 AWG copper a common practical choice for many 50-amp circuits.
The larger conductor can also be beneficial when voltage drop becomes a concern.
50 Amp Aluminum Wire Size
Aluminum is frequently used for larger electrical conductors because it is lighter and can be economical for longer or larger feeder installations.
For a 50-amp circuit, 6 AWG aluminum is one size that can have a 50A reference ampacity under specified 75°C conditions.
| Aluminum Wire Size | 60°C Reference | 75°C Reference |
|---|---|---|
| 10 AWG | 25 A | 30 A |
| 8 AWG | 35 A | 40 A |
| 6 AWG | 40 A | 50 A |
| 4 AWG | 55 A | 65 A |
| 2 AWG | 75 A | 90 A |
Aluminum conductors must be terminated using equipment and connectors approved for aluminum conductors. Installation practices also differ from copper in some situations.
Do not select aluminum simply because the AWG number matches a copper recommendation.
50 Amp Wire Size in mm²
Many electrical systems outside North America use square millimeters rather than AWG.
Common conductor areas relevant to 50-amp circuits include:
| AWG Size | Conductor Area | Approx. Metric Comparison |
|---|---|---|
| 10 AWG | 5.26 mm² | 6 mm² |
| 8 AWG | 8.37 mm² | 10 mm² |
| 6 AWG | 13.3 mm² | 16 mm² |
| 4 AWG | 21.2 mm² | 25 mm² |
AWG and metric sizes are not exact one-to-one equivalents. For example, 6 AWG has an actual conductor area of approximately 13.3 mm², while 16 mm² is a separate metric standardized size.
When specifying or replacing wire, use the conductor size required by the applicable electrical standard rather than assuming the closest metric number is automatically interchangeable.
How Many Watts Can a 50 Amp Circuit Handle?
The theoretical power of a circuit depends on voltage.
For a single-phase circuit:
Power = Voltage × Current
At 120 volts:
120V × 50A = 6,000 watts
At 240 volts:
240V × 50A = 12,000 watts
Therefore, a 50-amp circuit can theoretically supply:
| Circuit Voltage | Current | Theoretical Power |
|---|---|---|
| 120 V | 50 A | 6,000 W |
| 208 V | 50 A | 10,400 W |
| 240 V | 50 A | 12,000 W |
These figures describe apparent or nominal power based on voltage and current. Actual usable load depends on the equipment, circuit configuration, power factor where applicable, and electrical code requirements.
A 50-amp 120/240V circuit is different from a simple 50-amp 120V circuit because the available voltage and circuit configuration are different.
50 Amp 120/240 Volt Circuit
Many residential 50-amp circuits use a 120/240V configuration.
A typical multi-wire arrangement may include:
- Two ungrounded hot conductors
- One neutral conductor when required by the load
- One equipment grounding conductor
The exact conductor arrangement depends on the equipment and installation.
For example, some equipment needs both 120V and 240V, while other equipment may use only 240V and an equipment grounding conductor.
Do not assume that every 50-amp circuit requires a neutral. The equipment’s wiring requirements determine whether a neutral is needed.
50 Amp RV Wire Size
RV applications are a common reason people search for 50-amp wire size.
A typical 50-amp RV electrical connection uses a 120/240V system with two hot conductors, a neutral, and a grounding conductor.
For many installations, 6 AWG copper is commonly used for the hot and neutral conductors where the circuit requirements call for it.
However, RV circuit length can vary considerably. A long run from the electrical panel to an RV receptacle can produce significant voltage drop, especially when high-current loads are operating.
When planning an RV circuit, consider:
- Total circuit length
- Voltage
- Conductor material
- Load requirements
- Voltage drop
- Conduit or cable type
- Ambient temperature
- Number of current-carrying conductors
- Local electrical requirements
A longer RV installation may justify increasing conductor size beyond the minimum ampacity requirement.
Also Read:
50 Amp Range Wire Size
Large electric ranges and cooking equipment can use substantial electrical power, and some installations use 40-amp or 50-amp circuits.
The required wire size depends on the appliance nameplate rating and the applicable installation requirements.
A range rated for a 50-amp circuit may commonly be connected using appropriately sized copper conductors, but the exact conductor and circuit configuration should be determined from the appliance instructions and applicable electrical code.
Do not assume that every electric range requires a 50-amp circuit.
The equipment nameplate and manufacturer’s installation instructions should be checked first.
50 Amp Welder Wire Size
Welders can have unusual electrical characteristics because their input current and duty cycle may differ from ordinary continuous loads.
The required conductor size for a welder should therefore be based on the equipment specifications and applicable electrical rules rather than simply using a generic 50-amp chart.
A welder labeled with a 50-amp input requirement does not necessarily have the same wiring requirements as a continuous 50-amp resistive load.
Always check the manufacturer’s instructions before selecting the wire.
50 Amp Breaker and Wire Size
A 50-amp breaker protects a circuit against excessive current, but the breaker rating alone does not tell you every detail about the required conductor.
For a 50-amp circuit, commonly considered copper conductors include:
- 8 AWG copper under qualifying 75°C conditions
- 6 AWG copper as a common practical choice
- Larger wire when voltage drop or installation conditions justify it
The breaker, conductor, terminals, and equipment must be compatible.
A common mistake is assuming that installing larger wire allows a larger breaker. It does not. The overcurrent protection must be selected according to the complete circuit design.
Also Read:
50 Amp Wire Size for Long Runs
Circuit length is one of the most important considerations after ampacity.
As wire length increases, resistance increases. More resistance creates greater voltage drop when current flows through the conductor.
For a 50-amp circuit, voltage drop can become significant when the run is long.
A larger conductor has lower resistance, which can reduce voltage drop.
For example, someone planning a 50-amp circuit for equipment located a short distance from the panel may have different conductor requirements from someone installing the same equipment hundreds of feet away.
Before choosing wire for a long run, calculate voltage drop based on:
- Load current
- Supply voltage
- One-way distance
- Conductor material
- Conductor size
- Acceptable voltage-drop target
Increasing conductor size is a common way to reduce voltage drop, but the complete installation still needs to comply with applicable requirements.
Also Read:
Does 50 Amp Wire Need to Be 6 AWG?
Not necessarily.
This is one of the most important points when using a 50 amp wire size chart.
6 AWG copper is a common choice, but it is not universally the only acceptable conductor size for every 50-amp installation.
8 AWG copper has a 75°C reference ampacity of 50A, so it can be suitable under qualifying conditions.
However, the final conductor selection can depend on:
- Terminal temperature ratings
- Conductor insulation
- Installation conditions
- Ambient temperature
- Number of current-carrying conductors
- Circuit length
- Voltage drop
- Equipment requirements
- Applicable electrical code
Therefore, simply seeing “50 amps” does not automatically mean “6 AWG in every situation.”
Continuous Loads on a 50 Amp Circuit
Continuous electrical loads require additional consideration.
Under commonly used NEC requirements, a continuous load is generally treated differently from a noncontinuous load when sizing circuit components.
A commonly used planning rule is the 80% continuous-load guideline.
For a 50-amp circuit:
50A × 80% = 40A
This means a continuous load may be limited to approximately 40 amps on a 50-amp circuit under the applicable rules.
The exact calculation depends on the type of installation and governing electrical requirements.
This is particularly important when an electrical load operates continuously for extended periods.
Common Mistakes When Choosing 50 Amp Wire
Using 10 AWG Wire
10 AWG copper is generally too small for a typical 50-amp circuit because its reference ampacity is below 50A under the common 60°C and 75°C columns.
Assuming 8 AWG Is Always Acceptable
8 AWG copper can reach a 50A reference ampacity at 75°C, but that does not mean every 8 AWG installation can safely serve a 50A circuit.
Ignoring Voltage Drop
A conductor can satisfy a basic ampacity requirement while still producing excessive voltage drop on a long run.
Confusing Wire Size With Cable Size
6 AWG describes the conductor, not necessarily the overall outside diameter of the cable.
Ignoring the Neutral
Some 120/240V equipment requires a neutral, while some 240V-only loads do not. The equipment determines the required conductor configuration.
Using the Wrong Connector
Aluminum conductors require compatible terminals and connectors. Copper and aluminum should not be connected using unapproved methods.
Increasing the Breaker Without Checking the Circuit
A larger wire does not automatically justify a larger circuit breaker.
Quick 50 Amp Wire Size Reference
| Conductor | Approx. Area | 50A Reference Status | Typical Consideration |
|---|---|---|---|
| 10 AWG Copper | 5.26 mm² | Below 50A | Generally too small |
| 8 AWG Copper | 8.37 mm² | 50A at 75°C | Conditional |
| 6 AWG Copper | 13.3 mm² | Above 50A | Common choice |
| 4 AWG Copper | 21.2 mm² | Well above 50A | Larger than normally required |
| 8 AWG Aluminum | 8.37 mm² | Below 50A | Generally too small |
| 6 AWG Aluminum | 13.3 mm² | 50A at 75°C | Conditional/common option |
| 4 AWG Aluminum | 21.2 mm² | Above 50A | Larger option |
Frequently Asked Questions
What size wire do I need for 50 amps?
6 AWG copper is a common choice for a 50-amp circuit. However, 8 AWG copper can have a 50A ampacity under qualifying 75°C conditions. The final size depends on installation conditions, terminals, voltage drop, and applicable code.
Can 8 AWG wire handle 50 amps?
8 AWG copper has a reference ampacity of 50 amps in the 75°C column. Whether it can actually be used on a particular 50-amp circuit depends on the conductor, terminals, installation conditions, and applicable requirements.
Is 6 AWG wire good for 50 amps?
Yes. 6 AWG copper is commonly used for 50-amp circuits and has a reference ampacity above 50 amps under both the 60°C and 75°C columns.
Can 10 AWG wire be used for 50 amps?
Generally, no for a typical 50-amp circuit. 10 AWG copper has reference ampacities below 50 amps in the commonly used 60°C and 75°C columns.
How many watts can a 50 amp breaker handle?
At 240 volts, a 50-amp circuit has a nominal maximum of 12,000 watts based on voltage multiplied by current. At 120 volts, the corresponding figure is 6,000 watts. Actual permitted load depends on the circuit and applicable electrical requirements.
What size wire is commonly used for a 50 amp RV hookup?
6 AWG copper is commonly used for many 50-amp RV circuits. The exact conductor size should also account for circuit length, voltage drop, installation method, and applicable requirements.
Does a 50 amp circuit always need a neutral wire?
No. The required conductors depend on the equipment. A 120/240V load that uses 120V components may require a neutral, while a 240V-only load may not.
Can aluminum wire be used for 50 amps?
Yes, aluminum conductors can be used for 50-amp circuits when properly sized and installed with equipment and connectors approved for aluminum conductors. 6 AWG aluminum can have a 50A reference ampacity under qualifying 75°C conditions.
Should I use larger wire for a long 50 amp run?
A larger conductor may be appropriate for a long run because it reduces resistance and voltage drop. The required increase depends on circuit length, load current, conductor material, and acceptable voltage drop.
Conclusion
The 50 amp wire size chart shows why wire selection cannot be based on the breaker rating alone. For many installations, 6 AWG copper is a common and practical choice for a 50-amp circuit. However, 8 AWG copper can have a 50A reference ampacity at 75°C under qualifying conditions, so the exact requirements must be checked before installation.
Circuit length, voltage drop, conductor material, insulation temperature, terminals, continuous loads, and applicable electrical codes can all affect the final wire selection.
For aluminum conductors, 6 AWG can also provide a 50A reference ampacity under specified conditions, but approved aluminum-rated connections and installation practices are essential.
The safest approach is to use the chart as a starting reference, then verify the conductor size against the actual equipment requirements and electrical rules governing the installation.
