If you are installing a wood stove, fireplace insert, pellet stove, or heating appliance, choosing the right chimney pipe size matters more than many people realize. A chimney does much more than carry smoke outside. It creates draft, helps the appliance burn fuel properly, and keeps dangerous gases moving away from the living space.
A pipe that is too small can restrict airflow. A pipe that is too large can weaken draft, cause smoke spillage, and increase creosote buildup. That is why many homeowners, DIY installers, and even first-time buyers look for a simple chimney pipe size chart before starting a project.
In this guide, I will explain chimney pipe sizes in plain language, how sizing works, what measurements mean, and how to choose the right size for your setup.
What Is a Chimney Pipe?
A chimney pipe is an essential part of a heating system that safely removes smoke, gases, and heat produced by burning fuel in stoves or fireplaces. It ensures that combustion by-products are directed outside the building, keeping indoor air clean and safe for occupants.
In everyday use, people often confuse terms like stove pipe, flue pipe, and chimney pipe, but each has a specific role in the venting system.
1. Stove pipe
Stove pipe is the visible connector pipe that links the heating appliance (such as a wood stove or fireplace) to the main chimney system. It typically runs from the stove to a wall thimble, ceiling support box, or chimney entry point. It is designed for short-distance, indoor connections only.
2. Chimney pipe
Chimney pipe is an insulated pipe system designed to safely pass through walls, ceilings, attics, and roofs. It is built to handle high temperatures while maintaining safety clearance from combustible materials. This type of pipe is used in the main vertical or exterior chimney structure for proper venting.
3. Flue
The flue is the internal passage inside the chimney system where smoke and hot gases travel upward and exit the building. It can be part of a masonry chimney or a metal liner inside a chimney pipe system. The flue ensures smooth and controlled exhaust flow for safe combustion.
A common mistake in installations is using stove (connector) pipe in areas where chimney pipe is required. Single-wall stove pipe is not designed to pass through walls, ceilings, or any combustible structure. Using it incorrectly can create serious fire hazards, making proper selection of chimney components extremely important.
Why Chimney Pipe Size Matters
The diameter of a chimney pipe plays a crucial role in how efficiently a heating system operates. It directly affects the draft, which is the natural upward movement of hot gases produced during combustion. A properly sized chimney ensures smooth exhaust flow, better fuel efficiency, and safer indoor air quality.
Draft is the upward movement created when hot exhaust gases rise. Good draft helps the appliance burn cleaner and more efficiently.
If the chimney is too small:
- Smoke may back up into the room
- Appliance performance can drop
- Fire may burn poorly
- Carbon monoxide risks can increase
If the chimney is too large:
- Exhaust cools too quickly
- Draft becomes weak
- Creosote forms faster
- Startup becomes harder
A properly sized chimney usually follows the appliance manufacturer’s flue collar size, ensuring safe and efficient operation.
Chimney Pipe Size Chart
Here is a simple chimney pipe size chart for common residential heating applications. These standard sizes help match different heating appliances with the correct venting system for safe combustion and efficient airflow.
| Appliance Type | Common Appliance Output | Typical Flue Collar Size | Recommended Chimney Pipe Diameter |
|---|---|---|---|
| Small wood stove | Up to 40,000 BTU | 5 in. | 5 in. |
| Medium wood stove | 40,000–70,000 BTU | 6 in. | 6 in. |
| Large wood stove | 70,000–100,000+ BTU | 6–8 in. | Match appliance |
| Pellet stove | Varies | 3–4 in. | 3–4 in. |
| Fireplace insert | Varies | 6–8 in. | Match insert collar |
| Masonry fireplace liner | Depends on opening | 8–12 in. | Based on opening and height |
| Oil furnace | Varies | 5–8 in. | Per manufacturer |
| Gas appliance (Category I) | Varies | 3–6 in. | Per venting design |
The best rule is simple: match the appliance outlet unless manufacturer instructions say otherwise.

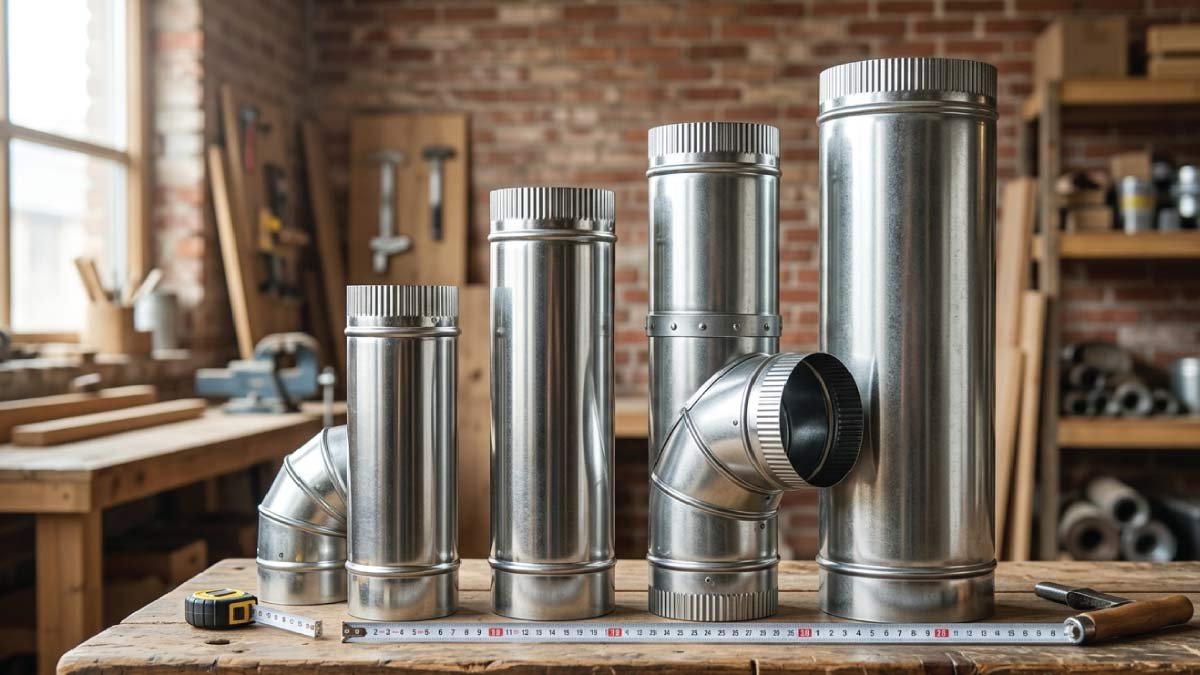

Common Chimney Pipe Diameters
Chimney pipe diameters vary depending on the type of stove, heat output, and venting requirements. Choosing the correct size is important for safe airflow, proper draft, and efficient combustion. In residential installations, certain standard sizes are commonly used for different heating appliances.
3-inch chimney pipe
A 3-inch chimney pipe is typically used for pellet stoves and small venting systems. It is suitable for low to moderate heat output appliances where less exhaust volume is produced. This size is compact, efficient, and commonly found in modern pellet-based heating systems.
4-inch chimney pipe
A 4-inch chimney pipe is also common in pellet appliances, especially those with slightly higher output. It allows better airflow compared to 3-inch systems while still maintaining efficient venting. This size helps improve combustion performance and is widely used in residential pellet stove installations.
5-inch chimney pipe
A 5-inch chimney pipe is often used in compact wood stoves and cabin heating systems. It provides a balance between airflow and heat retention. This size is suitable for small to medium heating needs and is commonly found in rural or cabin-style residential setups.
6-inch chimney pipe
A 6-inch chimney pipe is one of the most commonly used sizes in residential wood stove installations. It is suitable for standard wood-burning stoves and provides efficient draft and smoke evacuation. This size is widely recommended for general home heating applications due to its balanced performance.
7-inch chimney pipe
A 7-inch chimney pipe is less common today but is still used in some larger wood stoves and fireplace inserts. It is designed for higher heat output systems that require increased airflow. This size is typically found in older installations or specialized high-capacity heating appliances.
8-inch chimney pipe
An 8-inch chimney pipe is used for large wood-burning stoves and some fireplace inserts. It supports high-volume exhaust flow and is suitable for powerful heating systems. This size ensures efficient venting in heavy-duty residential or semi-commercial heating applications where larger combustion output is produced.
You May Also Like:
How to Measure Chimney Pipe Size
Accurate measurement of chimney pipe size is essential to ensure proper fitting, safe installation, and efficient performance. Many installation problems occur due to incorrect assumptions about pipe dimensions. Understanding how chimney pipes are measured helps avoid costly mistakes and ensures compatibility between components.
1. Inside diameter matters
Chimney pipe size is typically defined by its inside diameter, not the outside. For example, a 6-inch chimney pipe means the internal flue opening is 6 inches wide. This measurement is crucial because it determines airflow capacity and ensures correct system performance.
2. Connector pipe and insulated pipe differ
Insulated chimney systems have both inside and outside diameters. The outside diameter is larger because it includes insulation layers for safety and heat protection. For example, a 6-inch insulated pipe may have an outer diameter of 8 to 10 inches depending on the manufacturer and design.
3. Measure carefully
To measure correctly, always measure across the inside opening from one inner wall to the opposite inner wall. Do not measure from outside edge to outside edge, as this will give incorrect results. Accurate measurement ensures proper fitting, safe installation, and efficient chimney system performance.
Single-Wall vs Double-Wall Chimney Pipe
Understanding the difference between single-wall and double-wall chimney pipes is important for safety, efficiency, and correct installation. Each type is designed for specific locations and temperature conditions in a heating system, and using the wrong one can lead to poor draft or fire hazards.
1. Single-wall stove pipe
Single-wall stove pipe is the simplest type of chimney connector, typically used indoors to connect the stove directly to the main chimney system. It is cost-effective and commonly used in basic residential heating setups.
Benefits
- Lower cost
- Easy to cut
- Simple installation
Limitations
- Requires larger clearance from combustible materials
- Loses heat faster
- Not for walls, ceilings, or attic spaces
2. Double-wall stove pipe
Double-wall stove pipe is designed with an inner liner and an outer shell, creating an insulated air gap between the two layers. This improves heat retention and enhances draft performance while allowing safer installation in tighter spaces.
Benefits
- Better draft
- Reduced heat loss
- Smaller clearances in many systems
Class A insulated Chimney pipe
Class A chimney pipe is a fully insulated system used for passing through ceilings, attics, roofs, or exterior walls. It is built for high-temperature applications and provides maximum safety in residential and commercial installations.
- Used for roof, attic, and wall penetration
- Designed for high-temperature chimney applications
- Provides maximum fire protection
You May Also Like:
Wood Stove Chimney Pipe Sizing Rules
Proper sizing of wood stove chimneys is critical for safe operation and efficient combustion. Incorrect sizing is one of the most common causes of poor draft and smoke problems.
Rule 1: Match the flue collar
If your stove has a 6-inch outlet, you should use a 6-inch chimney pipe unless the manufacturer specifically allows a different configuration. This ensures proper airflow and combustion efficiency.
Rule 2: Avoid reducing size
Never reduce a 6-inch flue collar down to 5 inches unless explicitly approved by the manufacturer. Reducing pipe size usually restricts airflow and causes draft issues.
Rule 3: Avoid oversized chimneys
An oversized chimney can cool exhaust gases too quickly, which reduces draft strength. This often leads to creosote buildup, especially in cold climates where temperature differences are higher.
Rule 4: Height matters too
Even if the chimney diameter is correct, performance can still suffer if the chimney height is too short. Proper height is essential for creating sufficient draft pressure.
Chimney Height and Draft
Chimney performance depends not only on diameter but also on height. A taller chimney generally produces stronger and more stable draft, while a short chimney may struggle to draw smoke effectively, especially during startup conditions.
A commonly used guideline in residential installations is the 3-2-10 rule.
The 3-2-10 rule
The chimney should:
- Extend at least 3 feet above the roof penetration
- Be at least 2 feet higher than anything within 10 feet horizontally
This helps improve draft stability and reduces downdraft issues caused by wind or nearby structures.
Chimney Pipe Size for Fireplace Inserts
Fireplace inserts often require stainless steel liners because many older masonry fireplaces have oversized flues. Using the correct liner size ensures proper draft and efficient combustion inside the insert.
Typical insert sizes
- Small inserts: 5 or 6 inch
- Medium inserts: 6 inch
- Large inserts: 6 to 8 inch
Always refer to the manufacturer’s documentation before selecting liner kits to ensure compatibility and safe operation.
Pellet Stove Chimney Pipe Sizing
Pellet stoves operate differently from traditional wood-burning systems because they use controlled combustion and forced air systems. As a result, they require smaller vent diameters compared to wood stoves.
Common pellet vent sizes:
- 3 inch
- 4 inch
These smaller pipes are sufficient because pellet stoves produce lower exhaust volumes and more controlled burn conditions, making them more efficient in compact venting systems.
Common pellet vent sizes
| Pellet Stove Type | Common Pipe Size |
|---|---|
| Small pellet stove | 3 inch |
| Medium pellet stove | 3 inch |
| Higher-output pellet stove | 4 inch |
Long vent runs, many elbows, or vertical installations may require upsizing.
You May Also Like:
A Practical Example
A homeowner installs a medium-sized wood stove in a workshop. The goal is to create a safe, efficient heating system with proper draft and minimal smoke issues during operation.
The stove has a 6-inch flue collar.
The plan is:
- 4 feet of connector pipe indoors
- Ceiling support box
- 12 feet of insulated chimney through attic and roof
Correct sizing
In this case, the correct chimney setup follows standard design principles by matching the stove outlet size throughout the system.
The proper setup is normally:
- 6-inch connector pipe
- 6-inch Class A chimney
This ensures smooth airflow, stable draft, and efficient combustion from the stove to the chimney outlet.
What if 8-inch pipe is used instead?
If the system is incorrectly upgraded to an 8-inch chimney pipe, it increases the internal volume of the flue system. This larger space slows down the velocity of hot exhaust gases, which negatively affects draft performance.
The larger flue volume can cool gases more quickly. On cold mornings, the stove may smoke during startup and creosote may build faster.
Common Chimney Pipe Sizing Mistakes
Chimney pipe sizing mistakes can lead to poor draft, safety hazards, and inefficient heating performance. Many installation problems happen due to incorrect assumptions or ignoring manufacturer guidelines. Understanding these common errors helps ensure a safer, more efficient, and code-compliant chimney system.
1. Guessing instead of measuring
One of the most frequent mistakes is estimating chimney pipe size by appearance. Many people guess the diameter instead of measuring it accurately. This often results in ordering incorrect parts, causing installation delays, poor fitting, or unsafe venting conditions in the heating system.
2. Mixing incompatible brands
Different chimney pipe brands often use different locking mechanisms and dimensional standards. Mixing components from different manufacturers can lead to poor sealing, loose connections, or installation failure. Always use compatible systems from the same brand to ensure safety, durability, and proper system performance.
3. Using connector pipe as chimney pipe
A dangerous mistake is using stove (connector) pipe in place of insulated chimney pipe. Connector pipe is not designed for wall, ceiling, or roof penetration. Using it incorrectly can create serious fire hazards. Proper chimney pipe must always be used for passing through combustible structures.
4. Oversizing “for better airflow”
Many people assume that a larger chimney pipe improves airflow, but oversizing can actually reduce draft efficiency. A properly sized system maintains correct velocity and pressure balance. Incorrect sizing can lead to smoke backup, poor combustion, and reduced heating performance in the appliance.
5. Ignoring appliance instructions
Manufacturer guidelines are critical when selecting chimney pipe size. Ignoring installation manuals can result in unsafe setups or system failure. Every appliance is designed for a specific flue size, and following instructions ensures proper performance, safety compliance, and long-term reliability of the heating system.
You May Also Like:
Tips Before Buying Chimney Pipe
Before purchasing a chimney pipe system, careful planning is essential to ensure safety, efficiency, and compatibility. Considering key technical factors helps avoid installation errors, improves performance, and ensures long-lasting operation of the heating system in residential or commercial applications.
1. Confirm appliance flue collar diameter
The flue collar size on your heating appliance determines the starting point for chimney pipe selection. Always match the pipe size to the manufacturer’s specified outlet diameter. This ensures proper airflow, correct draft performance, and safe venting of smoke and gases from the system.
2. Plan the entire vent path
Before buying, carefully design the full venting route. Include vertical rise, elbows, wall pass-throughs, roof penetration, and total system height. Proper planning ensures correct airflow and avoids installation issues. A well-designed vent path improves efficiency and reduces the risk of smoke or draft problems.
3. Check local building codes
Building codes vary by region and must always be followed when installing chimney systems. These regulations define safety distances, material requirements, and installation methods. Compliance ensures safe operation, prevents legal issues, and guarantees that the system meets required fire and safety standards.
4. Think long-term
Investing in high-quality insulated chimney pipe is more cost-effective in the long run. Better materials offer improved safety, durability, and heat retention. Although they may cost more initially, they reduce maintenance needs and provide reliable performance over many years of continuous heating system use.
Quick Chimney Pipe Selection Guide
If you want a fast starting point, use this.
| Appliance | Common Size |
|---|---|
| Small wood stove | 5 inch |
| Medium wood stove | 6 inch |
| Large wood stove | 6–8 inch |
| Pellet stove | 3–4 inch |
| Fireplace insert | 6–8 inch |
Again, manufacturer instructions always override general charts.
Final Thoughts
A chimney pipe size chart gives you a useful starting point, but the safest and smartest approach is matching the appliance requirements.
In practical terms, most residential wood stove systems use 6-inch chimney pipe, pellet stoves commonly use 3-inch or 4-inch venting, and larger heating appliances may need 8-inch systems.
If there is one lesson worth remembering, it is this: proper chimney sizing is about balance, not simply choosing the biggest pipe available.
The right diameter, proper height, correct materials, and careful installation all work together to create safe venting, stronger draft, cleaner burning, and better long-term performance.
If you are planning a new stove or replacing an old vent system, starting with the correct chimney pipe size will save time, money, and trouble later.
